Chroma-key hill-climbing

The problem

I want illustrations of my raccoon character with a transparent background so I can drop them onto blog posts, newsletters, and dark-themed slides without a white box around the raccoon. The AI image generator I use can’t emit transparent PNGs directly. The standard workaround is: render the raccoon on a solid #FF00FF magenta background, then chroma-key that magenta out locally. Easy — except that the naive -fuzz 30% -transparent #FF00FF one-liner quietly produces broken images, and the damage is invisible on a white preview. This page is how I tuned the recipe.

What this is: a worked example of eval-driven hill-climbing — iterating on a real image-processing problem (pulling clean transparent backgrounds out of AI-generated character art) by treating each magick incantation as a “model”, the alpha mask it produces as the output, and a few cheap numerical metrics as the fitness function. Six approaches, two test images, one winning one-liner.
Repo: github.com/idvorkin-ai-tools/chroma-key-explainer · Harness: scripts/harness.sh

🏆 Winner — `flood4 + tight 3%`

269 total defect score — down from 17,385 for the textbook one-liner. A 65× improvement in five iterations.

Two-stage pipeline: flood-fill from the four corners (topology-aware background removal that never touches interior pixels), then a tight-fuzz chroma pass to clean up magenta pockets trapped between characters:

W=$(magick identify -format "%w" input.webp)
H=$(magick identify -format "%h" input.webp)
magick input.webp -alpha set -fuzz 30% -fill none \
  -draw "color 0,0 floodfill"       -draw "color $((W-1)),0 floodfill" \
  -draw "color 0,$((H-1)) floodfill" -draw "color $((W-1)),$((H-1)) floodfill" \
magick tmp.webp -fuzz 3% -transparent "#FF00FF" out.webp

TL;DR. If you chroma-key by eyeballing the result on a white page, you will ship broken images. Magenta-tinted highlights inside a character get eaten by aggressive fuzz, and interior pockets between characters stay fully opaque — both invisible at a glance. You only see the damage when you pull the alpha channel out as a grayscale image and measure it. Once you have a fitness function (holes, residual magenta, edge fringe), the search is easy.

What are evals?

In the LLM world, an eval is a quantitative quality metric run against a model’s output. Borrow that vocabulary here and the pieces line up cleanly:

The “model” is whichever ImageMagick recipe you’re currently trying.
The “output” is the resulting RGBA image — specifically its alpha channel.
The eval scores are cheap pixel counts: how many interior holes did the chroma eat?, how much magenta did it miss?, how fringed are the edges?

With those three numbers in hand, iterating is just hill-climbing: try a variant, measure, keep the one that moves your metric in the right direction, repeat. No visual judgment required at the inner loop.

Why do we need evals?

Because eyeballing fails silently. An image that looks cleanly keyed on a light page can be riddled with defects your eye can’t see — transparent pixels render as whatever’s behind them, so holes in fur look like fur on a white background. Extracting the alpha channel as a grayscale PNG is the ground truth; a perfectly keyed image has a solid-white subject silhouette on solid black. Anything else is a defect.

Here are the two test cases used throughout this page — a raccoon character rendered by an AI image generator on its standard magenta background. Same character, two compositions. They fail differently:

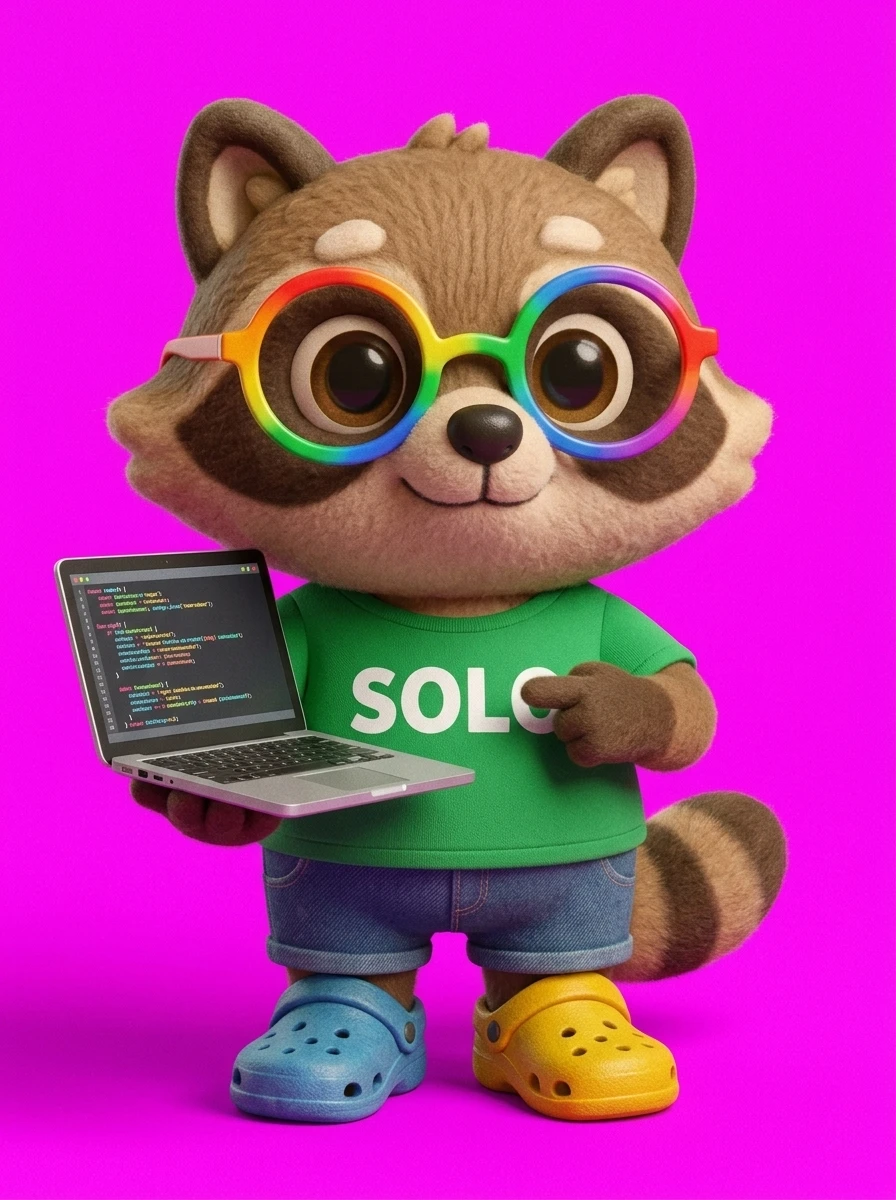

Case A: single raccoon on magenta background, sparse composition — case-sparse: single SOLO raccoon

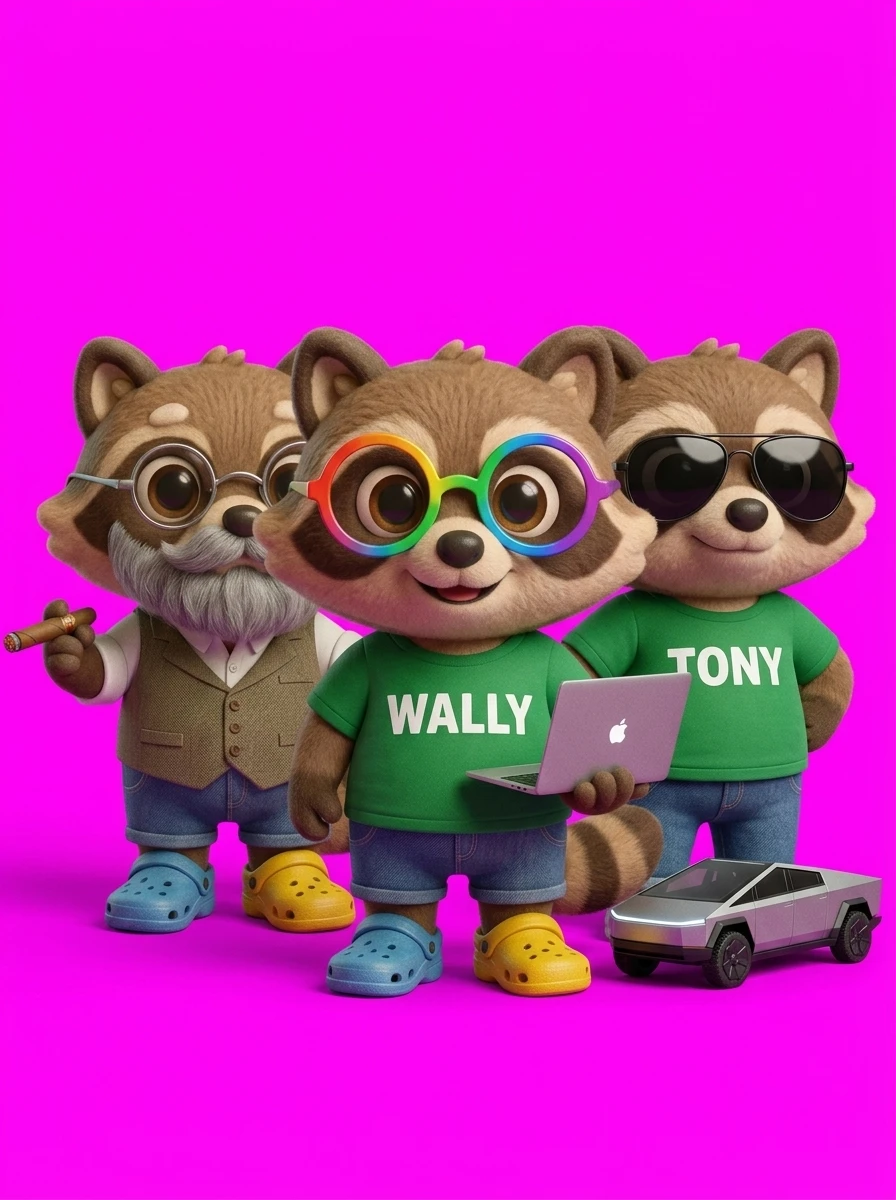

Case B: three raccoons tightly packed on magenta background, dense composition — case-dense: trio, packed tight

Case A — sparse: “looks fine” is a lie

Naive chroma-key on the sparse case looks completely clean on a light background. The raccoon’s silhouette sits cleanly on white; nothing jumps out. But pull the alpha channel and you see the damage: thousands of interior holes where magenta-tinted highlights on the fur got killed by the 30% fuzz.

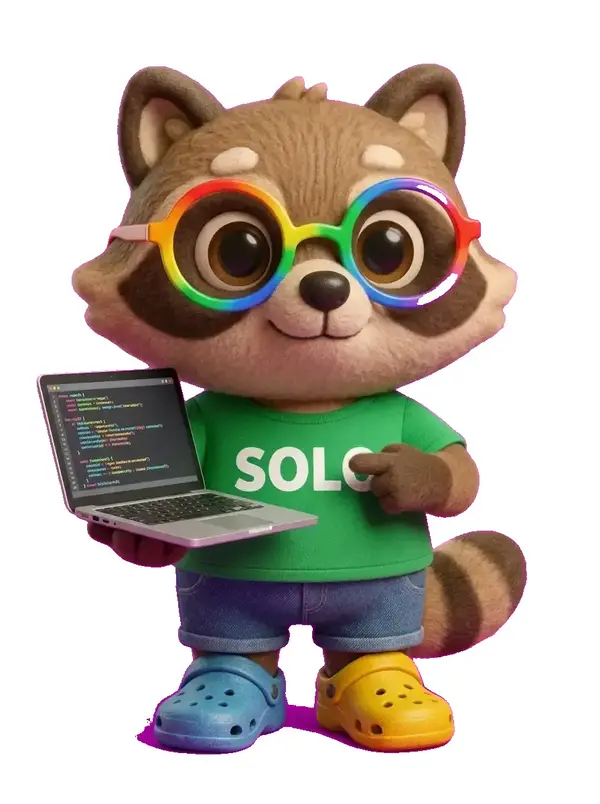

Plain chroma output rendered on white background — looks clean — composite on white: looks clean

Alpha mask of the plain chroma output — visible black speckle inside the raccoon where fur highlights were eaten — alpha mask: 7,698 interior holes

Without the alpha extraction, you’d ship this. Every hole becomes a background-colored pinhole when the image gets composited onto some other backdrop (a blog post, a dark theme, a newsletter template).

Case B — dense: a different failure mode

The dense composition fails two ways. Same fur-highlight holes as case A, plus large interior pockets of magenta trapped between the characters’ legs and bodies — fully opaque regions of background-color that a plain -fuzz 30% -transparent kills cleanly, but which leave huge black-fur-colored gaps when fuzz is restrained to preserve interior highlights.

Plain chroma output on dense case, rendered on white — composite on white: looks clean

Alpha mask of plain chroma on dense case — more holes, including between characters — alpha mask: 9,687 interior holes

Crucially, the two cases don’t respond to the same fix. An approach that aces case A (leaves the interior untouched) will fail case B (leaves magenta pockets between characters), and vice-versa. Without evals on both images, you’d tune on one and regress the other without noticing. That’s the whole point: evals surface the failure mode a single eyeball on a single image won’t.

The fitness function

The scoring pipeline is scripts/eval.py, ~50 lines. Three pixel counts drive the search:

residual_magenta_px — opaque pixels still near #FF00FF. Missed background.
interior_hole_px — transparent pixels enclosed by opaque. Eaten interior. Computed with a connected-components scan: label every transparent region, mark labels that touch the image border as background, and whatever’s left are holes.
edge_fringe_px — partial-alpha pixels. Incomplete edges. (Turned out to be zero across every attempt here, so it doesn’t affect ranking.)

Combined into a single score:

score = residual × 5 + holes — a pixel of pure magenta in your subject is obvious at a glance; a single transparent pixel in fur isn’t. Weight residual 5× so the optimum lands on "fully keyed" rather than "slightly pocked."

Two more metrics (opaque_px for subject-coverage sanity, alpha_binarity_pct for how close the mask is to pure black-and-white) are reported for regression-checking but don’t drive the search.

The human doesn’t climb the hill — the agent does. My job ended at "here are the three numbers that measure success, and here’s how to weight them." From that point on, the coding agent ran the harness, read the evals, proposed the next recipe, ran it, and scored it — on loop until the climb plateaued. That’s the whole payoff of eval-driven work: once the fitness function is sharp, the inner loop is no longer a human loop. I looked at the final result and spot-checked the regressions; the agent did the search.

The hill-climb

Each row of the table below is one attempt, in the order they were tried. Read top-to-bottom to see each step’s delta against the running best — that’s the hill-climb made visible. Green means we moved uphill; grey is a plateau; red is a step off the ridge.

Journey: baseline plain → topology fix flood4 → polish second pass (sweep fuzz 3%, 5%, 10%) → structural detour cc_border (dead end).

#	Attempt	Strategy — what changed vs. previous	sparse	dense	total	Δ vs. best so far	What the eval said
1	`plain`	Textbook one-shot chroma-key, `-fuzz 30% -transparent`	7,698	9,687	17,385	— baseline	Zero residual, but 17k interior holes. Fuzz eats magenta-tinted fur highlights.
2	`flood4`	Flood-fill from the four image corners only. Interior pixels can’t be reached, so they survive.	0	660	660	↓ 16,725 · new best	Topology solved. 132 residual magenta in dense — pockets trapped between bodies.
3	`flood4 + tight 3%` 🏆	Add a second chroma pass at `-fuzz 3%` to clean the trapped pockets without eating fur.	0	269	269	↓ 391 · new best	Residual 132 → 37 on dense, at a cost of 84 new holes. Sweet spot.
4	`flood4 + tight 5%`	Same pipeline, nudge the knob up: `-fuzz 5%`.	0	270	270	+1 · tied (trade flipped)	Residual → 0 but holes 84 → 270. Same total, different failure mix.
5	`flood4 + tight 10%`	Keep pushing: `-fuzz 10%`. Does the trade keep breaking even?	249	1,077	1,326	↑ 1,057 · worse	Over the ridge. Sparse regresses (highlights eaten); dense jumps 4×. Past the optimum on the fuzz axis.
6	`cc_border`	Structural change: binarise to a magenta/non-magenta mask first, then flood-fill the mask from corners.	7,698	9,686	17,384	↑ 17,115 · regression to baseline	Fails identically to `plain`. Different machinery, same failure mode.

The callback that closes the story. cc_border’s failure mode is the reason our interior-hole metric works. Once a magenta-tinted highlight becomes “magenta” in a binary mask, corner-flood can reach it through thin connecting pixels — which is exactly how eval.py labels holes (“transparent but border-reachable” means it was never really interior). Operating on the original RGBA (flood4) preserves the pixel gradients that keep interior highlights unreachable. Same topology, same trap, applied in opposite directions.

Key findings

Evals exist to expose invisible defects. Plain chroma on a white page looks perfect; the alpha mask reveals 17k holes. Any hill-climb is doomed if you can’t see the damage.
Structural fixes dominate parameter sweeps. The jump from plain (17k) to flood4 (660) was a 26× gain from one topology change. The entire fuzz sweep 3% → 10% only moved the score across a much narrower band. Fix the mountain before tuning the knob.
Sweep the knob anyway — it’s cheap. Trying 3/5/10% took three harness runs and revealed the optimum plus the cliff. Picking 3% by eye would have missed that 5% was essentially tied and 10% was a cliff-dive.
Structural detours keep you honest. cc_border didn’t win, but the fact that it regressed back to baseline confirmed the flood-fill-on-RGBA step was load-bearing, not decorative.
Score both test cases, not one. Every approach that aced sparse had to be re-checked against dense, and vice-versa. Without case-dense, the sweep would have picked the wrong winner.

Per-attempt deep dives

Each card below has the exact command, per-case eval row, and four-up comparison (composite-on-white plus alpha mask for both test cases).

1. plain — textbook fuzzy chroma (baseline)

magick input.webp -fuzz 30% -transparent "#FF00FF" out.webp

The textbook one-liner. 30% fuzz because AI-generator output is never pure #FF00FF — there’s colour bleed near edges, JPEG/WebP noise, and anti-aliasing. Zero fuzz leaves a halo.

case	holes	residual	fringe	score
sparse	7,698	0	0	7,698
dense	9,687	0	0	9,687

sparse plain on white — sparse / on white

What the eval says: zero residual magenta (aggressive fuzz killed every bg pixel) but 7.7k–9.7k interior holes. The same fuzz tolerance that removes the background also removes any magenta-tinted pixel inside the subject.
Next: stop chroma-keying interior pixels at all. Only remove background that’s actually connected to the image edge.

2. flood4 — flood-fill from the four corners

magick input.webp -alpha set -fuzz 30% -fill none \
  -draw "color 0,0 floodfill"     -draw "color W-1,0 floodfill" \
  -draw "color 0,H-1 floodfill"   -draw "color W-1,H-1 floodfill" \

Topological fix: use flood-fill from the corners to mark only reachable magenta as background. Interior magenta-tinted pixels can’t be reached through a wall of opaque fur, so they survive.

sparse	0	0	0	0
dense	0	132	0	660

sparse flood4 on white — sparse / on white

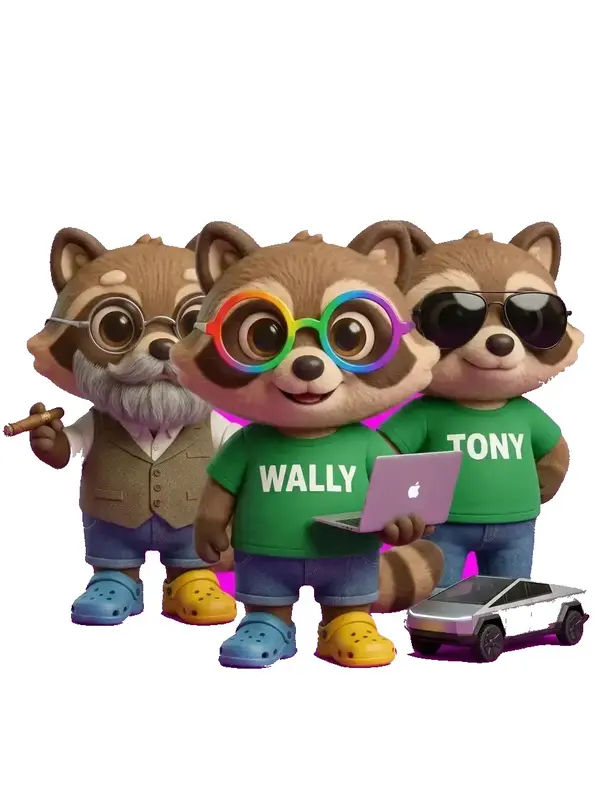

dense flood4 on white — dense / on white

What the eval says: holes go to zero on both cases — topology solved. But dense now has 132 residual magenta pixels: interior pockets of background trapped between the three bodies. Flood-fill can’t reach them from the corners because the characters form a closed ring.
Next: clean up those interior pockets with a second, tight chroma pass — low fuzz so it kills pure magenta but not tinted fur.

3. flood4 + tight 3% — the winner 🏆

magick tmp.webp -fuzz 3% -transparent "#FF00FF" out.webp

After flood4, apply a second chroma pass with a very tight fuzz tolerance. 3% is small enough to leave tinted pixels alone.

sparse	0	0	0	0
dense	84	37	0	269

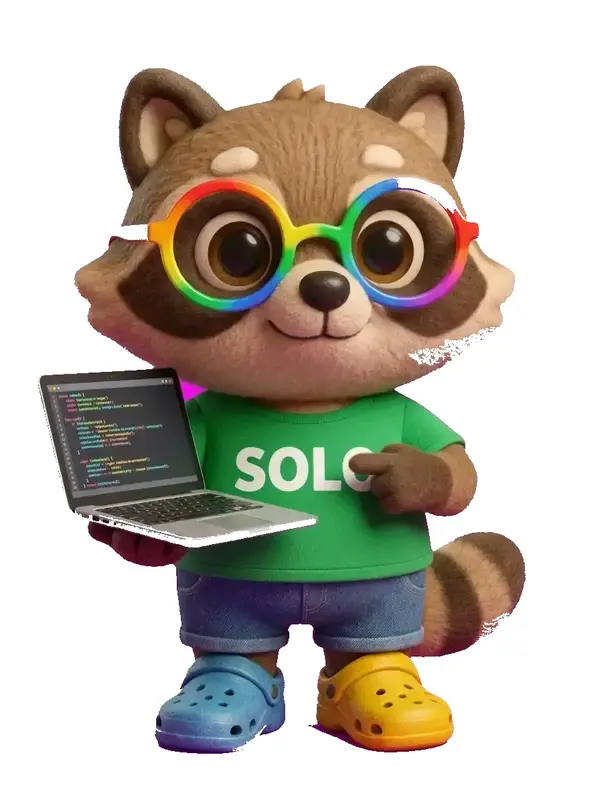

sparse f+t3 on white — sparse / on white

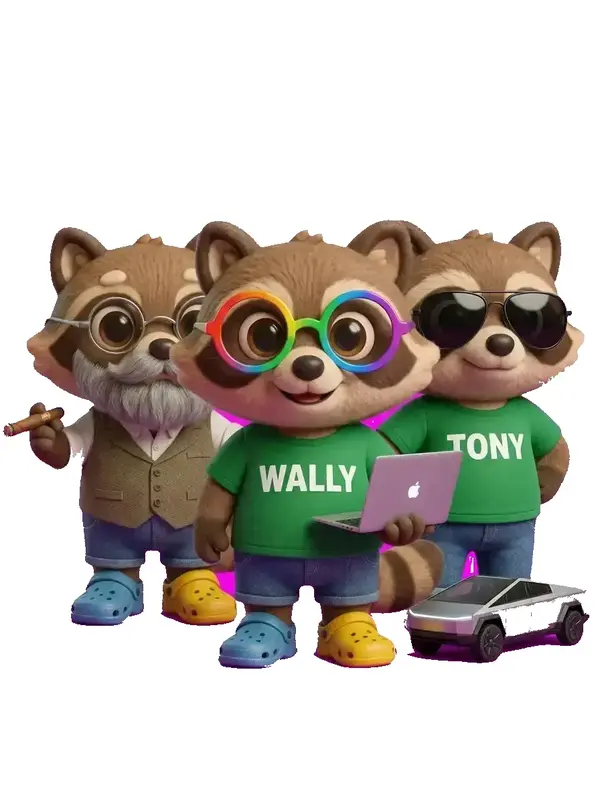

What the eval says: residual magenta drops from 132 → 37 on dense, at the cost of 84 new interior holes (tight pass caught a few almost-pure magenta highlight pixels). Best residual×5 + holes score so far: 269 on dense, 0 on sparse.
Next: nudge the tight fuzz up to see if we can drive residual to zero without paying too much in holes.

4. flood4 + tight 5% — essentially tied

magick tmp.webp -fuzz 5% -transparent "#FF00FF" out.webp

Same strategy, slightly looser second pass.

sparse	0	0	0	0
dense	270	0	0	270

sparse f+t5 on white — sparse / on white

What the eval says: residual goes to zero, but holes jump to 270. Score: 270 on dense — very close to tight-3%, with the trade-off flipped.
Next: push harder, see if the trade keeps being roughly even or whether the hole cost explodes.

5. flood4 + tight 10% — over the ridge

magick tmp.webp -fuzz 10% -transparent "#FF00FF" out.webp

sparse	249	0	0	249
dense	1,077	0	0	1,077

sparse f+t10 on white — sparse / on white

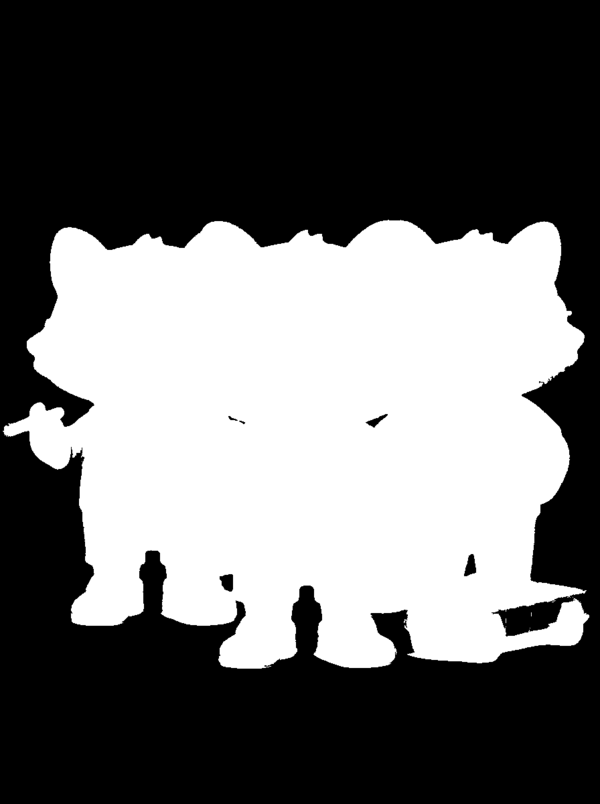

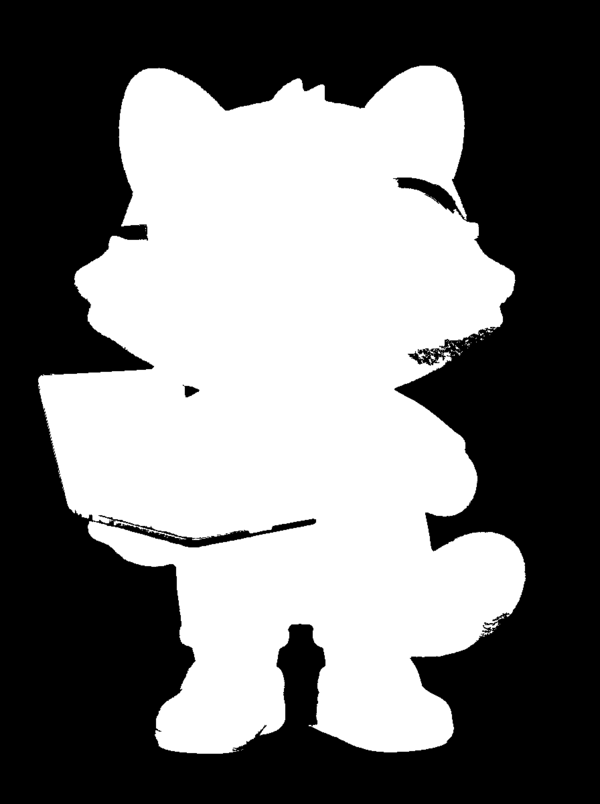

What the eval says: the hole cost explodes. Sparse regresses from 0 to 249 (magenta-tinted highlights inside the solo raccoon now get eaten); dense jumps to 1,077. We’ve gone past the optimum on the fuzz axis.
Next: try something structurally different — connected-components on a binarised magenta mask — to see if a different representation avoids the fuzz/hole trade-off entirely.

6. cc_border — structural detour, dead end

# Binarise magenta, then keep only the components touching the image edge.
magick input.webp -fuzz 30% -fill white +opaque "#FF00FF" -fill black -opaque white mask.png
magick mask.png   -fuzz 10% -fill red \
  -draw "color 0,0 floodfill" -draw "color W-1,0 floodfill" \
  -draw "color 0,H-1 floodfill" -draw "color W-1,H-1 floodfill" \
  -channel R -separate -threshold 50% -negate alpha.png
magick input.webp alpha.png -compose CopyOpacity -composite out.webp

Structurally different approach: first reduce the image to a binary magenta/non-magenta mask, then flood-fill the mask from the corners. The resulting alpha is applied to the original image.

sparse	7,698	0	0	7,698
dense	9,686	0	0	9,686

sparse cc_border on white — sparse / on white

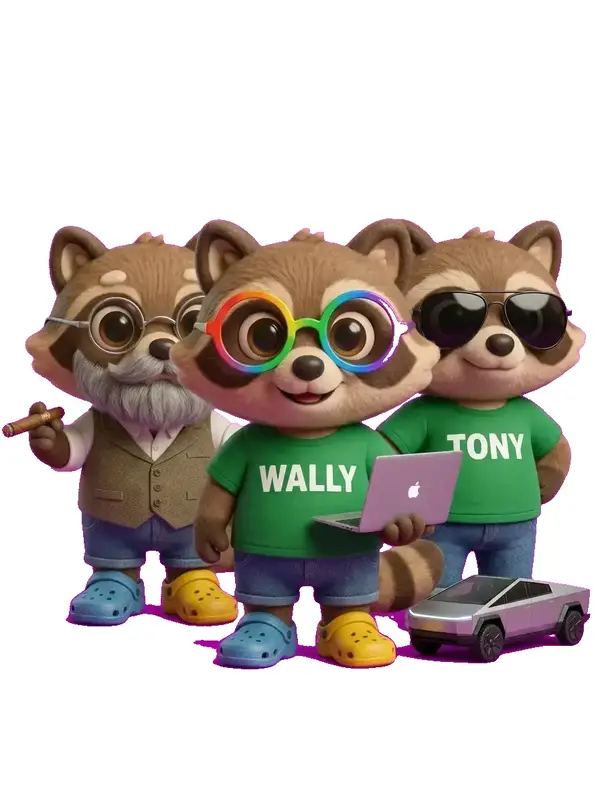

dense cc_border on white — dense / on white

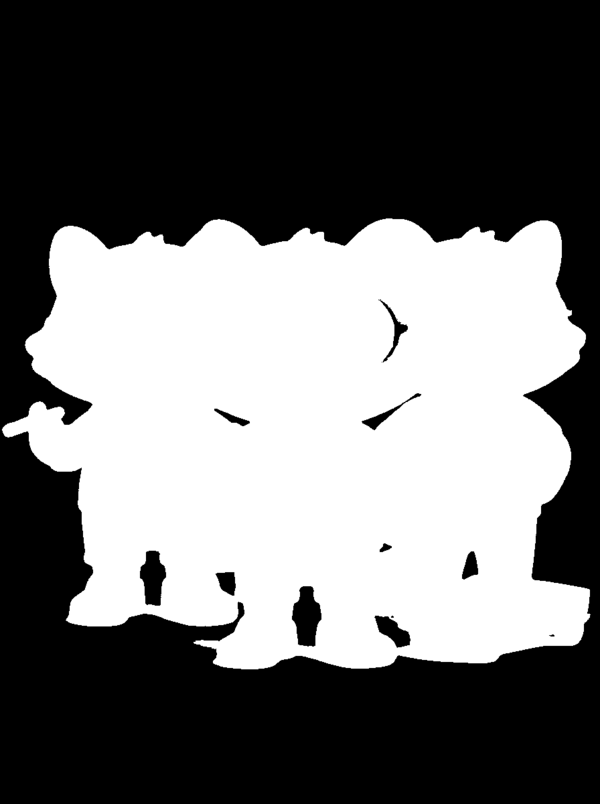

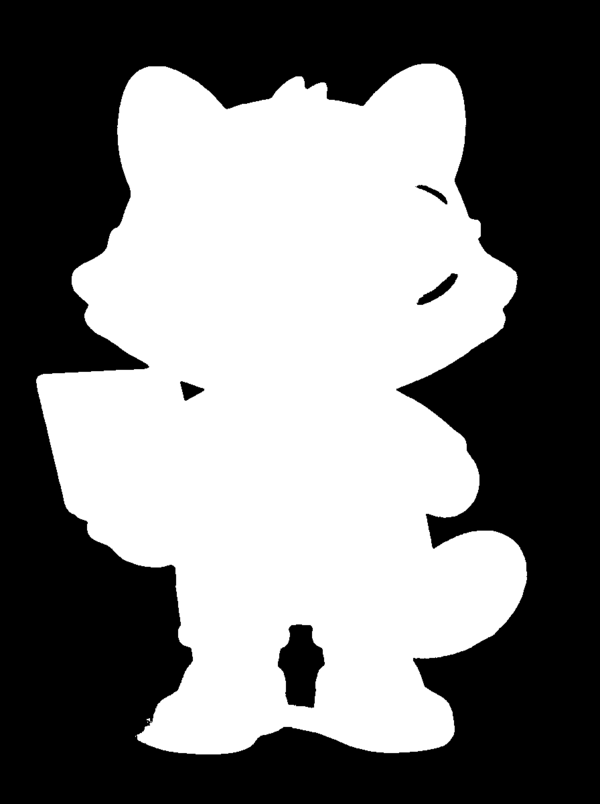

What the eval says: essentially identical to plain. The binarisation step loses the same interior highlight pixels that plain’s aggressive fuzz did — they flip to “magenta” in the binary mask and then get labelled as background because the border-fill can reach them through thin connecting pixels. More machinery, same failure mode.
Verdict: stop. The flood-fill-on-the-original-RGBA approach (not on a binarised mask) is what does the real work. flood4 + tight 3% is the winner.

Reproducibility

git clone https://github.com/idvorkin-ai-tools/chroma-key-explainer.git
cd chroma-key-explainer
./scripts/harness.sh     # requires `magick` and `uv` on PATH
# writes results/<image>/<approach>.webp + -alpha.png + metrics.json

The eval.py script uses PEP 723 inline deps and runs under uv with no pre-installation step.

The winning recipe is codified as a reusable step in the blog’s gen-image skill so every AI-generated character illustration goes through the same verified pipeline — and the skill now runs eval.py automatically at the end of every generation. Each image ships with a metrics card (residual, holes, fringe); if a future model update or prompt tweak regresses any of those numbers, the deviation is flagged on the spot instead of being discovered weeks later when someone notices pinholes in a dark-mode render. The hill-climb proved the recipe once; the auto-eval keeps it honest every time.
